Pure analog sound and flexible routing

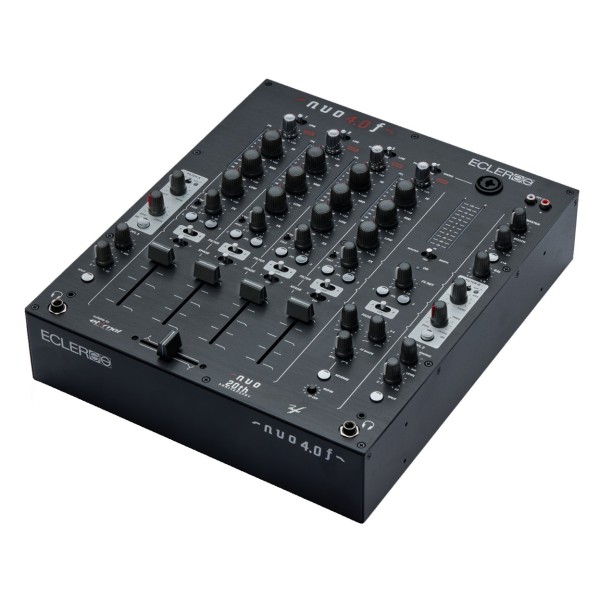

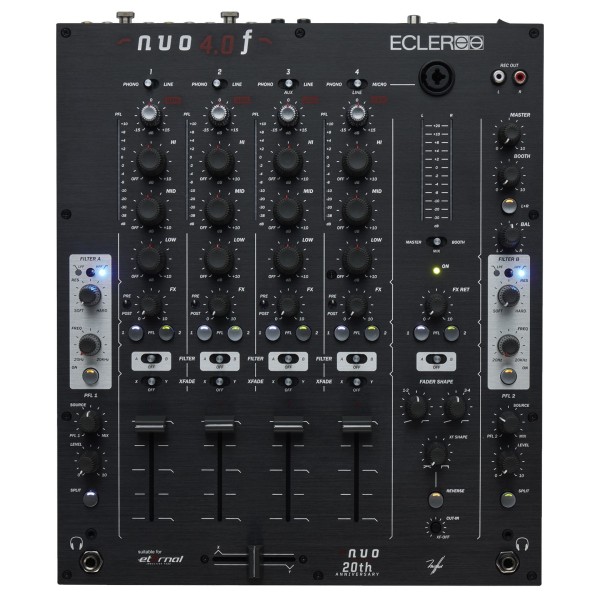

The NUO 4.0F combines Ecler’s analog sound character with modern routing control for every kind of performance. Four channels accept phono, line, aux or microphone sources, each with dedicated gain and three band EQ. The mixer delivers a full frequency response from 10 Hz to 30 kHz with minimal distortion, keeping sound natural and detailed.
Balanced XLR outputs for master and booth channels provide professional level output for clubs or recording setups. Separate record and FX send outputs simplify live and studio integration, and internal dip switches allow you to increase master and booth output gain by 12 dB when connecting to high headroom amplifiers.
Dual VCF filters for creative mixing
Two independent voltage controlled filters give DJs wide control over tone and movement in the mix. Each channel can route to either filter and switch between high pass and low pass modes. Frequency sweeps from 20 Hz to 20 kHz and resonance adds up to 12 dB of emphasis for sweeping transitions and dramatic build ups.
The filters’ fully analog design ensures smooth natural behaviour and authentic texture. Both filters can also process external effects return signals, extending sound design options when performing live or in the studio.
Crossfader precision for scratching and blending
The NUO 4.0F includes Ecler’s advanced VCA crossfader system for smooth movement and long life. It can also be fitted with the ETERNAL magnetic crossfader, offering contact free performance for scratch specialists.
Shape, reverse and cut in controls allow you to define your own feel from gradual blends to sharp cuts. Each channel can be assigned to either side of the crossfader or bypassed entirely for layered mixes. The 60 mm faders and adjustable curves provide fine control for every style from house and techno to hip hop and performance turntablism.
Professional connectivity and monitoring

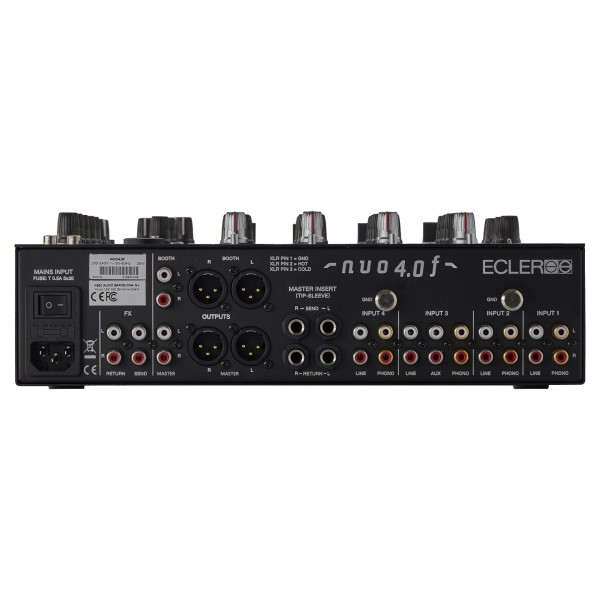

With balanced XLR master and booth outputs, unbalanced record and FX send or return ports, and a combo XLR jack for microphone input, the NUO 4.0F fits seamlessly into any DJ booth. Two headphone outputs let two DJs pre listen to different channels simultaneously with independent PFL controls, making it perfect for back to back sets.
The monitoring section includes a split mode, mix balance and individual volume controls for precise cueing. Housed in a tough metal chassis with ALPS potentiometers and faders rated for millions of movements, the NUO 4.0F delivers the reliability and tactile precision that define Ecler’s professional range.
Features
- Four input channels support phono, line, aux, and mic sources for flexible routing
- Dual fully analog VCF filters with high-pass and low-pass modes, 20Hz–20kHz sweep, and up to 12dB resonance
- Crossfader uses VCA technology and is upgradeable to ETERNAL magnetic crossfader for contact-free operation
- Independent crossfader and channel fader curve, reverse, and cut-in adjustments for custom response
- Dual headphone outputs with separate PFL, blend, and volume controls for back-to-back DJ sets
- Balanced XLR and unbalanced RCA master and booth outputs with selectable +12dB boost
- Dedicated record output and FX send/return loop for easy integration of outboard gear
- 60mm channel faders with adjustable curves for smooth and responsive control
- Master insert point for stereo processing across the entire mix without repatching
- Premium ALPS potentiometers provide tactile, precise control of EQ and filter settings
- Detailed frequency response from 10Hz to 30kHz ensures high-fidelity analog sound
- Front panel metering for house, booth, and mix levels simplifies live gain staging
- Robust build quality suitable for professional club and studio environments
Specifications
- Number Of Inputs:
- Line: 5 Stereo Unbalanced Inputs
- Phono: 4 Stereo Unbalanced Inputs
- Micro: 1 Mono Balanced Input
- FX Return: 1 Stereo Unbalanced Input
- Connectors Type:
- Line 1-2-3-4: RCA Stereo
- Phono 1-2-3-4: RCA Stereo
- AUX: RCA Stereo
- Micro 4: Combo XLR3F-6.3mm TRS BAL
- FX Return: RCA Stereo
- Inputs Sensitivity Nom/Impedance:
- Line: 0dBV / 50kΩ
- Phono: -40dBV / 50kΩ
- Micro: -50dBV / >1kΩ
- FX Return: 0dBV / >6kΩ
- Number Of Outputs:
- House: 1 Stereo Balanced Output, 1 Stereo Unbalanced Output
- Booth: 1 Stereo Balanced Output, 1 Stereo Unbalanced Output
- Headphone: 4 Stereo Unbalanced Outputs (2 Independent PFL)
- FX Send: 1 Stereo Unbalanced
- Rec: 1 Stereo Unbalanced
- Connectors Type:
- House: XLR3-M Stereo, RCA Stereo
- Booth: XLR3-M Stereo, RCA Stereo
- Headphone: 2 Jack Stereo 6.3mm, 2 Jack Stereo 3.5mm
- FX Send: RCA Stereo
- Rec: RCA Stereo
- Outputs Level/Minimum Load:
- House (BAL): 0dBV / 600Ω 1V (+12dB 4V)
- House (UNBAL): 0dBV / 2.2kΩ 1V (+12dB 4V)
- Booth (BAL): 0dBV / 2.2kΩ 1V (+12dB 4V)
- Booth (UNBAL): 0dBV / 2.2kΩ 1V (+12dB 4V)
- Rec: 0dBV / 10kΩ
- Headphones: 200mΩ / 200Ω THD 1%
- FX Send: 0dBV / 2.2kΩ
- Max Undistorted Output Level:
- House (Electr. BAL): 21dBV (23dBu)
- Booth (Electr. BAL): 21dBV (23dBu)
- House (UNBAL): 21dBV (23dBu)
- Booth (UNBAL): 21dBV (23dBu)
- Frequency Response:
- Line: 10Hz ÷ 30kHz -1dB
- Micro: 10Hz ÷ 25kHz -1dB
- Phono: RIAA ±0.5dB
- FX Return: 10Hz ÷ 50kHz -1dB
- THD+N:
- Line: <0.03%
- Micro: <0.08%
- Phono: <0.08%
- FX Return: <0.003%
- CMMR: Micro >75dB @ 1kHz
- Signal To Noise Ratio:
- Line: >103dB
- Micro: >185dB
- Phono: >90dB
- FX Return: >110dB
- Trim Control: Inputs 1-2-3-4: +15dB
- Tone Control Inputs 1-2-3-4:
- Bass: +10 / -30dB
- Mid: +10 / -30dB
- Treble: +10 / -30dB
- Tone Cut Frequency At -6dB (Slope 12dB/Oct):
- Bass: 200Hz
- Mid: 200Hz ÷ 6.8kHz
- Treble: 6.8kHz
- VCS Filters:
- Frequency: 20Hz ÷ 20kHz
- Max Resonance: +12dB
- Control Mode: 60mm Long Faders By Ecler
- Phantom Voltage: 18VDC / 5mA Max (Default ON)
- Input VU-Meter: LED 12 Segments (-38dBV ÷ +10dBV)
- House-Mix-Booth VU-Meter: LED 12 Segments (-30dBV ÷ +20dBV)
- AC Mains Voltage: 90–264VAC 47–63Hz
- AC Main Connector: 15A IEC Inlet Connector
- Rated Power Consumption: 37VA
- Operating Temperature: Min: -5°C (23°F), Max: 45°C (113°F)
- Operating Humidity: 20–90% RH (No Condensation)
- Storage Temperature: Min: -10°C (14°F), Max: 50°C (122°F)
- Storage Humidity: <90% RH (No Condensation)
- Installation Options: Desktop Or Rack Mount With Optional Accessories
- Included Accessories: IEC Cable, 8 RCA Caps For Unused Phono Inputs
- Optional Accessories: Ecler ETERNAL Crossfader
- Dimensions (W x H x D): 320 × 79.4 × 372 mm / 12.60 × 3.13 × 14.65 In
- Weight: 4.72 kg / 10.41 lb
- Shipping Dimensions (W x H x D): 495 × 175 × 435 mm / 19.49 × 6.89 × 17.13 In
- Shipping Weight: 6.14 kg / 13.54 lb
- Product Code: CNUO40F
